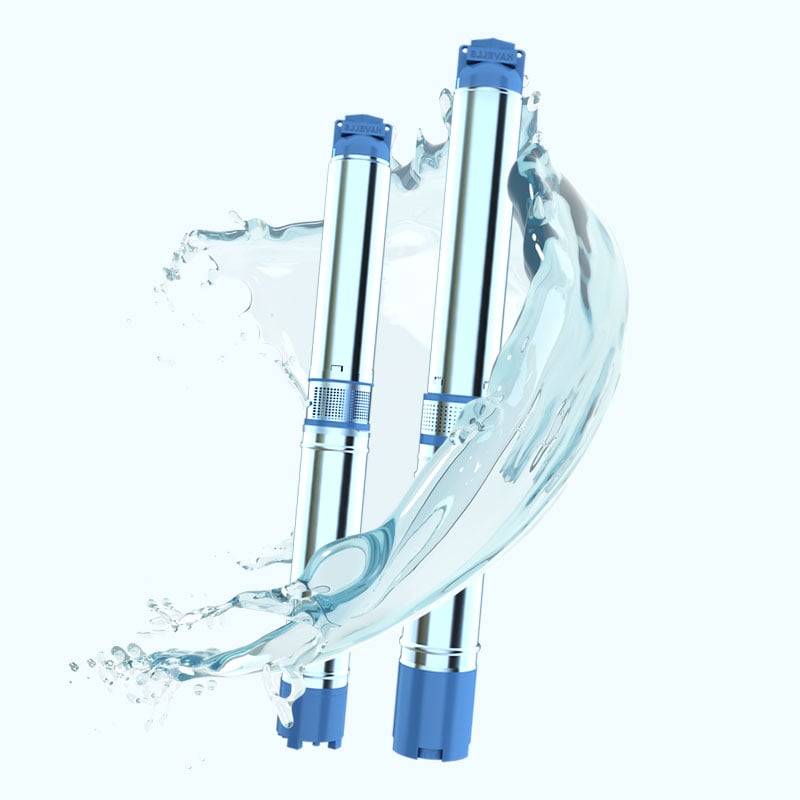

Submersible Pump

Oil Filled / Water Filled

Performance Chart

H.P.	Satges	Deli Size
1.0	4/08	1.25"
1.0	4/10	1.25"
1.5	4/15	1.25"
2.0	4/18	1.25"
2.0	4/20	1.25"
3.0	4/30	1.25"
1.5	7/8	1.5"
2.0	7/10	1.5"
3.0	7/12	1.5"

Total Head in Meters
20	25	35	40	42	52	60
37	36	33	31	28	24	21
47	44	42	39	35	30	26
74	70	66	62	55	48	41
83	80	74	70	61	54	45
92	87	84	78	68	61	50
140	132	125	117	104	90	76
45	41	39	37	36	33	31
53	51	48	46	39	31	24
63	61	58	55	46	38	29

Discharge in LPM

Features

All components are manufactured from material as per Indian Standard Specifications. They are precisely machined on modern machines, including CNC machines to give you years of reliable operation.
Motors are designed to operate under large voltage fluctuations.
Motors have well designed sleeve and thrust bearing for longer life.
Motor Stator & Rotor are vacuum impregnated and properly coated to ensure corrosion resistance.
High operating efficiency of pump-set, result into high water discharge rate lower power consumption.
All rotation components and assemblies are dynamically balanced long bearing life and vibration free smooth operation.
The Pump-Sets are compact and slim and can be easily installed in narrow wells.

MATERIAL OF CONSTRUCTION

Motor Body:

Stainless Steel

Stator:

Vacuum impregnated and epoxy coated for corrosion resistance, which and laminations are provided to protect motor windings.

Rotor:

Sand blasting and coated with polyurethane paint for corrosion resistance & dynamically balanced for vibration free smooth operation.

Winding:

Polyester insulated / enamelled copper.

Journal Bearing:

Leaded Bronze and Stainless Steel, Water Lubricated having high load bearing capacity.

Thrust Bearing:

Special self-aligning and water lubricated to withstand high axial thrust loads.

Diaphragm:

Adequately sized to accommodate pressure difference of water inside the motor and prevent loss of cooling water.

Impeller:

High quality abrasion resistant Noryl.

Bowl:

High grade Noryl / Cast Iron.

Wear Ring

High quality abrasion resistant P.U / Rubber

Shaft:

Stainless Steel of adequate diameter to ensure rigidity and ground to close tolerances.

Suction Casing:

Provided with perforated stainless steel strainer and adequately sized to allow the water to be sucked in with minimum friction.

Arrangement:

Designed so that no bore well water with sand can enter the motor.

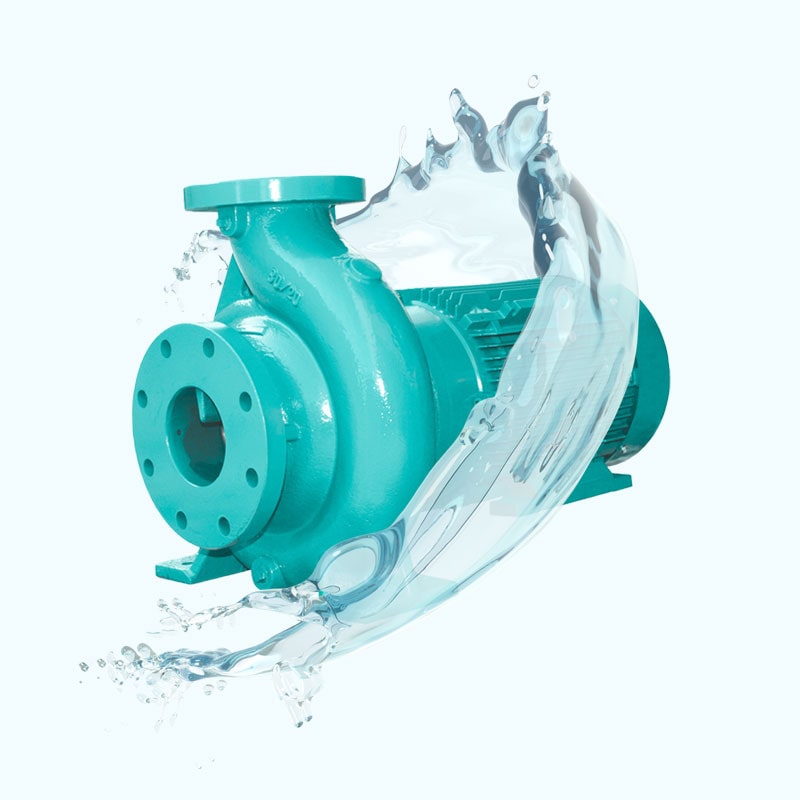

Centrifugal Monoblock Pump

Chorme Steel Shaft
Cast Iron Impeller
Cast Iron Motor Body
Thermal Overload Protection
Mechanical Seal, High Quality Carbon / Ceramic

Application

Lawn
Gardens
Car Washing
Small Farms
Apartments
Bungalow

Head In (m)
H.P.	SIZE	06	12	18	24	30	35
1	32x25	250	138	130	98	60	25
2	50x50	700	400	300	140	60	25
2	65x50	785	495	325	200	100	50
3	50x50	--	380	345	325	300	260
3	65x50	--	750	565	250	150	100
3	75x75	--	780	420	210	130	80
